By using solid CBN tips and new PVD coating，the Coated PCBN BHC200P Series has an excellent tool life while processing hardened steel at a high speed (Vc≥150m/min)，it is suitable for continuous to medium intermittent processing of hardened steel. Typical parts include gears, transmission shafts, wind turbine bearings,Wheel hub unites, etc.
 |
 |
 |
 |

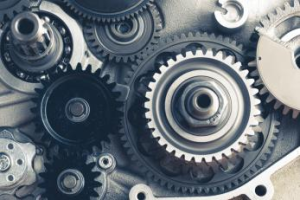

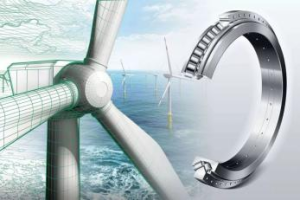

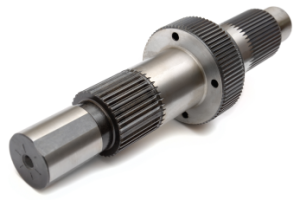

| Gear | Shaft | Wind turbine bearings | Wheel hub unit |
The new generation of TiAlSiN coating has good chemical wear resistance and improves the tool life while at highly speed.
 |
TiSiN层 |
| TiAlSiN层 | |
| AlTiN层 | |
| AlTiN层 | |
 |

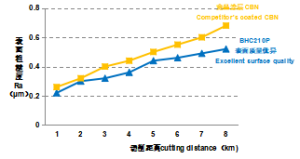

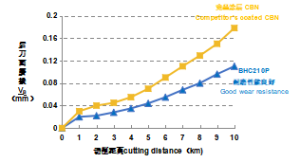

| 被加工材料Workpiece：GCr15(58-62HRC)
刀具型号Test tool：DNGA150408LS-2 切削参数Parameters：Vc=180m/min，f=0.1mm/rev，ap=0.1mm，水基乳化液/外冷（wet/external） |
 |
|
 |
 |
|
Post time: 4月-18-2024
