In 2023, GESAC launched five categories to supplement our product line, including taps, micro-tools for boring, PCD composite boring reamers &PCD guide tools, heavy turning holders & internal cooling holders and broaching tools, which broadened GESAC cutting tool product line and brought more provided options to customers.

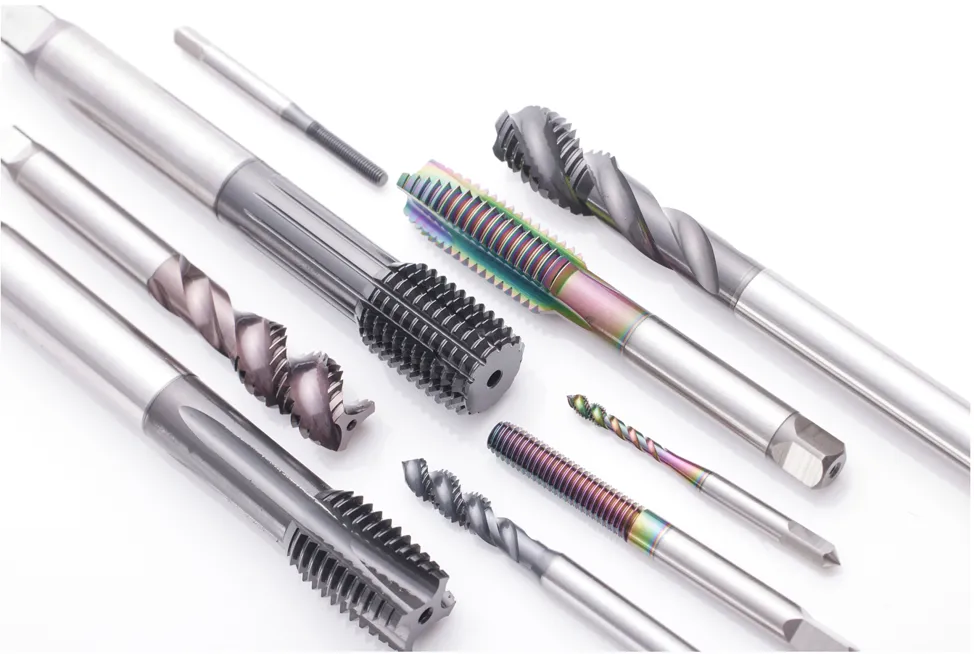

GESAC latest range of tap products, encompassing four distinct types: forming taps,spiral fluted taps, spiral pointed taps and straight fluted taps. In line with our product positioning, these taps are further classified into two categories: high-performance and cost-effective.
-
High performance: 2 series, 8 models, 262 specifications.
-
Cost-effective: 4 series, 12 models, 606 specifications.
-
Complete range: encompassing both high-performance and cost-effective options, available in both metric and American system.
-
Extensive coverage: cover mainly P/M/N/K materials processing.
-
Superior performance: T series for efficiency, ET series covers low rigidity occasions.
-
- 247 standing specifications, 28 days lead time for non-stocked specifications.

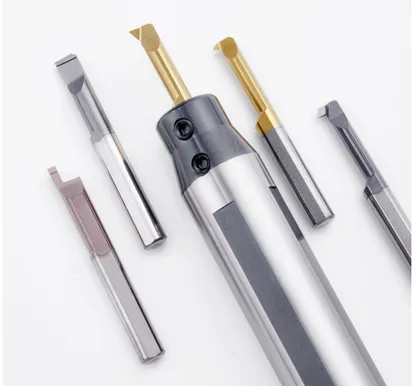

Micro-tools for Boring is used for small hole, including boring, grooving and threading.
-
Hole diameter range cover φ1-φ8, include 25 models, 562 specifications.
-
Three major series cover the machining of stainless steel, carbon steel, and high-hardness steel. By pairing with different materials and coatings, they meet the processing requirements for high wear resistance and high surface finish, primarily used in the micro-hole machining of 3C products, small parts, aviation, automotive, and other fields.
-
We have a sufficient stock of 396 commonly used tap specifications. The delivery time of special products is 10-15 working days.

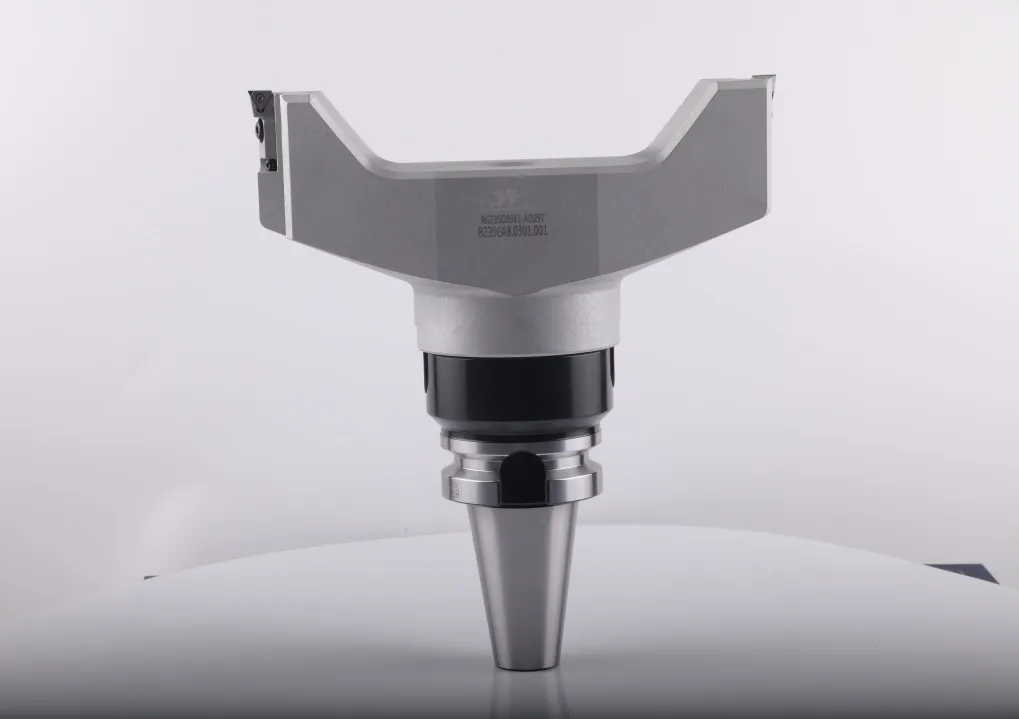

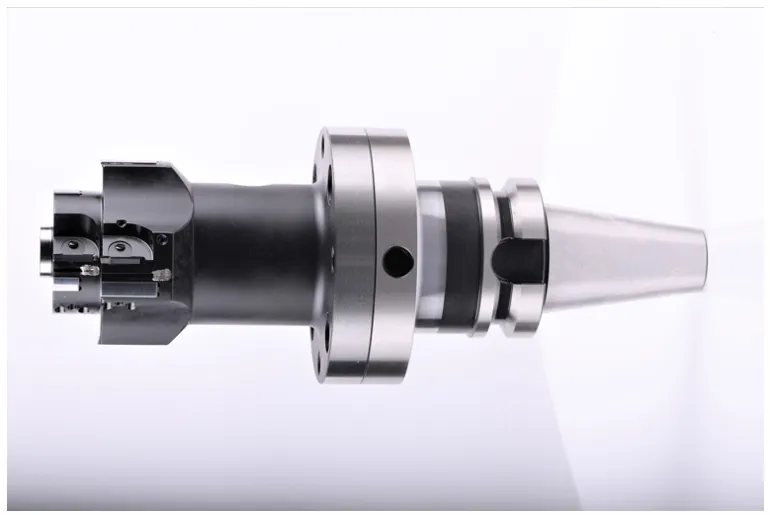

PCD Composite Boring Reamers & PCD Guide Reamers is mainly used for efficient and high-finishing processing of drive motor housing of new energy vehicle.
-
High-efficiency machining: With multiple step composite design, it enables simultaneous machining of multiple diameters, reducing tool change time and improving machining efficiency.
-
Light weight design: special structural design is adopted to minimize the weight of the tool, which can match the tool weight requirements of different machine tool spindles.
-
High machining accuracy: Adoption of the micro-adjustable tool clamp structure enables machining with tolerance IT7.
-
Easy maintenance:Tool clamp designed, convenient to adjustment and maintenance.
-
Wide diameter range: Capable of machining diameters ranging from 15mm to 250mm, with a length-to-diameter ratio ≤20.
-
Excellent machining precision:, diamond guide bar runout ≤ 0.002mm.
-
Replaceable Boring inserts Design for efficiency and cost Reduction.
-
Meet the needs of products with diameter tolerance IT6, roughness Ra0.8, and cylindricity 0.008mm.

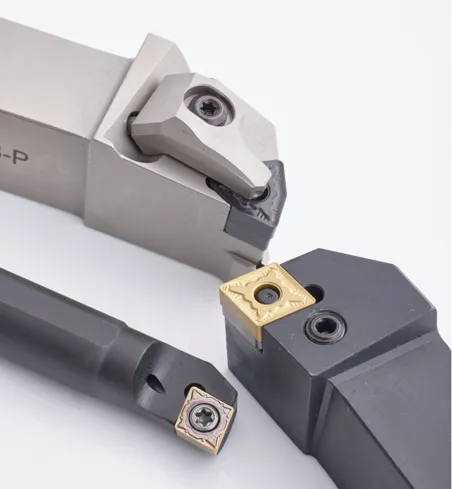

Heavy turning holder is mainly used for processing with large cutting depth of large-sized components, internal cooling holder is mainly employed in machine tools requiring high precision, demanding tool life, and efficient chip evacuation.
- P-type: Lever type clamping, include 128 specifications, the shank dimension cover from 20*20 to 50*50.\
- Type D high pressure internal cooling: Include 16 specifications, cover C/D/V/W type commonly cutting edge angle, the shank dimension cover from 20*20 to 50*50.
- Type S internal cooling for inner hole: The steel holder includes 50 specifications, cover the range of φ8~φ25; The cemented carbide holder includes 18 specifications, cover a range of φ8~φ25.
- Type P: Applied to heavy turning, without pressure plate structure, avoid resulting in frequent replacement of the pressure plate, clamping force is large, allowing the tool to be adjusted during processing to adapt to different processing requirements.
- Type D high pressure internal cooling: Mainly through the pressure plate to transfer the coolant to the relief side of inserts, the pressure reached 10bar-130bar.
- Type S internal cooling for inner hole: Screw clamping, through the precise delivery of coolant, improve tool life, the overhang > 4dm by steel holder, the overhang > 6dm by carbided holder.

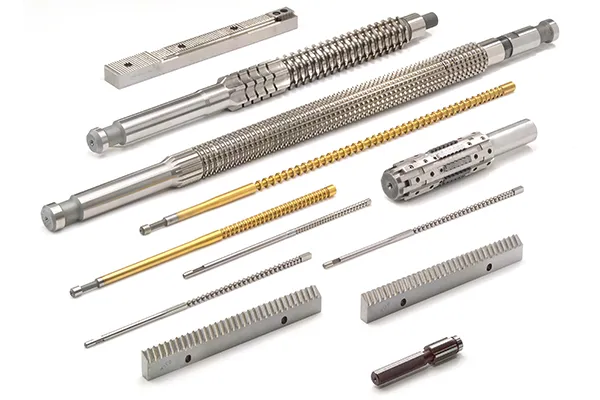

Broaching tools are mainly used for batch processing round holes, splines, keyways, forming surfaces, etc., with high production efficiency.
-
Product types: Round Broaches, Keyway Broaches, Rectangular Spline Broaches, Involute Spline Broaches, Surface Broaches, Tonguing Broaches, Helical Gash Broaches, Lane Broaches.
-
Size Specifications: It has a maximum diameter of 250mm, length of 3000mm, and a minimum diameter of 5mm.
-
Mature technology and stable quality: Excelling and outstanding machining precision and offering outstanding tool life.
-
Wide Range of Applications: Apply to automotive, aerospace, machine tools, railways, turbines and other fields.
