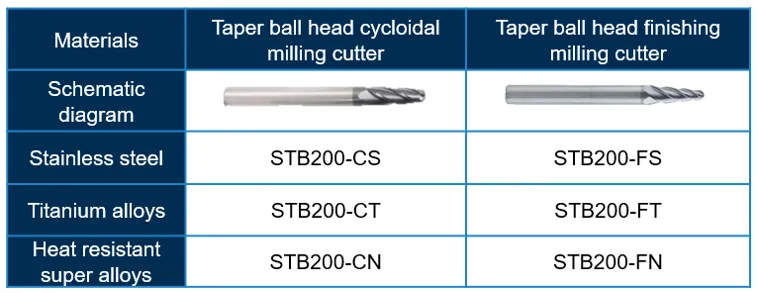

Product Introduction | STB200 Series New Product Introduction

Integral impeller and turbine blisk are the core components of aero engine, steam turbine and other devices. They have the structural characteristics of high-precision complex curved surface, narrow flow channel, large hanging depth and thin wall, and are generally difficult to process materials, putting forward higher requirements for the performance level of tools. Based on the efficient processing technology of impeller and turbine blisk, we developed special processing tools STB200 products for stainless steel, titanium alloys, heat resistant super alloys which are common materials manufacturing impeller and blisk.

01 Taper ball head cycloidal milling cutter

Highlight 1

In order to cope with the high-impact cycloidal milling process, the best tool matrix and coating process is selected to achieve the perfect combination of high wear resistance and high toughness.

Highlight 2

Designed for titanium alloys and heat resistant super alloys materials, the bottom edges and peripheral edges chip breaking teeth improve the chip removal ability.

Highlight 3

For titanium alloys and heat resistant super alloys materials, specially designed "circular arc" bottom edge, increase chip space, and ensure tool strength; The special design of the peripheral chip breaking teeth avoids the interference of the back end of the chip breaking teeth and improves the tool life.

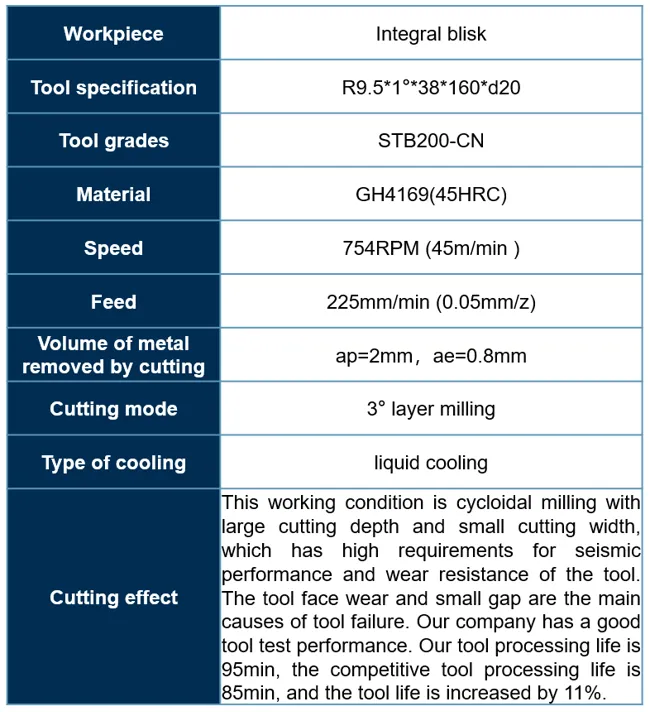

Case:Heat resistant super alloys integral blisk roughing
